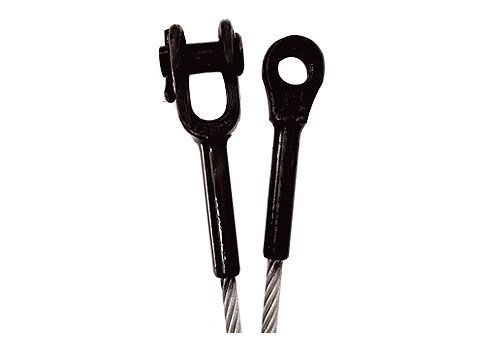

SOCKET SWAGING PROCESS is the method that connects WIRE ROPE to a socket and does SWAGING the terminal part. When the safety load of sling use in the 90~95% load efficiency is required, the safety rate of 6 to 1 should be applied to the breaking load of W
Request specifications
▪ WIRE ROPE DIA : (00 mm) ▪WIRE ROPE structure and cutting load : 6XWS36RC (00 TON) ▪ The length of SLING WIRE : (00 M) ▪ SOCKET TYPE : (Select either OPEN or CLOSED)
SWAGING TERMINAL PROCESS Directions
▪Connect WIRE ROPE to a socket and SWAGING while rotating it in various angles (90˚ - 45˚ - 30˚). The lead of a skilled engineer is required for processing. ▪Warning : Do not SWAGING a socket direction by the right angle of (90˚ - 90˚) in order to accelerate SWAGING. ▪Warranty : When following the item 1 and 2 above, the warranty with the 90~95% load efficiency will be provided.
