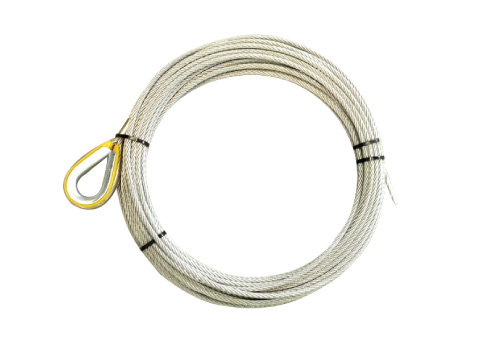

Gondola Plascom Type
|
|
 A new design for practical use No. 2007-5465
compared to previous products, it increases work efficiency with updated methods to improve safety and with a reasonable price. |
 |
 |
 For Crane. Hoist and General Engineering Purposes
Construction : 6 Strands 19 Wires per Strand 1 Fiber Core |
 Safety
▪ Prevention of industrial disaster by finishing the end of wire.
▪ Protection and safe delivery of a product without obstacles in product transportation.
▪ Prevention of accidents caused by corrosion in the sea.
▪ Easiness to fit to any circumstance and environment with various colors. | |
|
Diameter of
Rope
(mm) |
Minimum Breaking Load in Metric Tons |
Approx.Weight
per Meter
(kg/m) |
AG
(150 kg/㎟) |
A&BG
(165kg/㎟) |
B&CG(180kg/㎟) |
C
195 kg/㎟) |
| Ordinary |
Lang's |
|
4 |
0.81 |
0.88 |
0.94 |
0.96 |
1.04 |
0.058 |
|
5 |
1.27 |
1.38 |
1.46 |
1.50 |
1.63 |
0.091 |
|
6 |
1.82 |
1.98 |
2.11 |
2.16 |
2.34 |
0.131 |
|
6.3 |
2.01 |
2.18 |
2.33 |
2.38 |
2.58 |
0.144 |
|
8 |
3.24 |
3.52 |
3.75 |
3.84 |
4.16 |
0.233 |
|
9 |
4.11 |
4.46 |
4.74 |
4.86 |
5.27 |
0.295 |
|
9.5 |
4.56 |
4.96 |
5.28 |
5.41 |
5.87 |
0.328 |
|
10 |
5.07 |
5.50 |
5.86 |
6.00 |
6.50 |
0.364 |
| |
|
|
|
|
|
|
|
11.2 |
6.36 |
6.90 |
7.35 |
7.53 |
8.15 |
0.457 |
|
12 |
7.30 |
7.91 |
8.44 |
8.65 |
9.35 |
0.524 |
|
12.5 |
7.92 |
8.59 |
9.15 |
9.38 |
10.15 |
0.569 |
|
14 |
9.93 |
10.8 |
11.5 |
11.8 |
12.8 |
0.713 |
|
16 |
13.0 |
14.1 |
15.0 |
15.4 |
16.7 |
0.932 |
|
18 |
16.4 |
17.8 |
19.0 |
19.4 |
21.0 |
1.18 |
|
19.1 |
18.5 |
20.0 |
21.4 |
21.9 |
23.7 |
1.33 |
|
20 |
20.3 |
22.0 |
23.4 |
24.0 |
26.0 |
1.46 |
|
|
|
|
|
|
|
|
|
22.4 |
25.4 |
27.6 |
29.4 |
30.1 |
32.6 |
1.83 |
|
24 |
29.2 |
31.7 |
33.7 |
34.6 |
37.5 |
2.10 |
|
25 |
31.7 |
34.4 |
36.6 |
37.5 |
10.7 |
2.28 |
|
26 |
34.3 |
37.2 |
39.6 |
40.6 |
44.0 |
2.46 |
|
28 |
39.7 |
43.1 |
45.9 |
47.0 |
50.9 |
2.85 |
|
30 |
45.6 |
49.5 |
52.7 |
54.0 |
58.5 |
3.28 |
|
|
|
|
|
|
|
|
|
31.5 |
50.3 |
54.6 |
58.1 |
59.5 |
64.5 |
3.61 |
|
33.5 |
56.9 |
61.7 |
65.7 |
67.3 |
72.9 |
4.08 |
|
35.5 |
63.9 |
69.3 |
73.8 |
75.6 |
81.9 |
4.59 |
|
36 |
65.7 |
71.3 |
75.9 |
77.8 |
84.3 |
4.72 |
|
37.5 |
71.3 |
77.3 |
82.4 |
84.4 |
91.4 |
5.12 |
|
38 |
73.2 |
79.4 |
84.6 |
86.6 |
93.8 |
5.26 |
|
40 |
81.1 |
88.0 |
93.7 |
96.0 |
104.0 |
5.82 |
|
|
|
|
|
|
|
|
|
42 |
89.4 |
97.0 |
103.0 |
106.0 |
114.0 |
6.42 |
|
42.5 |
91.5 |
99.3 |
106.0 |
108.0 |
117.0 |
6.57 |
|
44 |
98.1 |
106.0 |
113.0 |
116.0 |
125.0 |
7.05 |
|
45 |
103.0 |
111.0 |
119.0 |
122.0 |
131.0 |
7.37 |
|
46 |
107.0 |
116.0 |
124.0 |
127.0 |
137.0 |
7.70 |
|
47.5 |
114.0 |
124.0 |
132.0 |
135.0 |
147.0 |
8.21 |
|
50 |
127.0 |
138.0 |
146.0 |
150.0 |
163.0 |
9.10 |
|
|
|
|
|
|
|
|
|
53 |
142.4 |
154.5 |
164.0 |
168.5 |
183.0 |
10.22 |
|
56 |
159.0 |
172.5 |
183.0 |
188.0 |
204.0 |
11.42 |
|
60 |
182.5 |
198.0 |
210.0 |
216.0 |
234.7 |
13.10 |
|
63 |
201.0 |
218.3 |
232.0 |
238.0 |
258.8 |
14.45 |
|
|
|
|
| |
|
|
|
|
|
|
|
