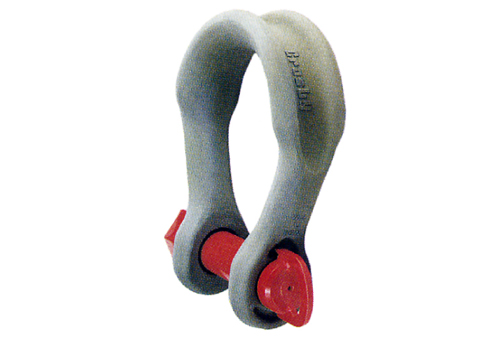

Wide Body Shackles
|
|
 |
 |
 |
● All sizes Quenched and Tempered for maximum strength.
● Forged alloy steel from 7 through 300 metric tons.
● Cast alloy steel from 400 through 1550 metric tons.
● Sizes 300 metric tons and smaller are proof tested to 2 times the Working Load Limit.
● Sizes 400 metric tons and larger are tested to 1.33 times Working Load Limit.
● All ratings are in metric tons, embossed on side of bow.
● G-2160, (7-55t), are Hot Dip Galvanized and pins are painted red.
● G-2160, (75t and larger), bows are furnished Dimetcoted, and pins are Dimetcoted, then painted red.
● S-2160 bows and pins are painted red.
● Shackles, 30t and larger, are RFID EQUIPPED.
● Greatly improves life of wire rope slings.
● Can be used to connect HIGH STRENGTH Synthetic Web Slings, HIGH STRENGTH Synthetic
Round Slings or Wire Rope Slings.
● Increase in shackle bow radius provides minimum 58% gain in sling bearing surface and
eliminates need for a thimble.
|
|
|
|
| |
|
|
|
|
|
|
|
